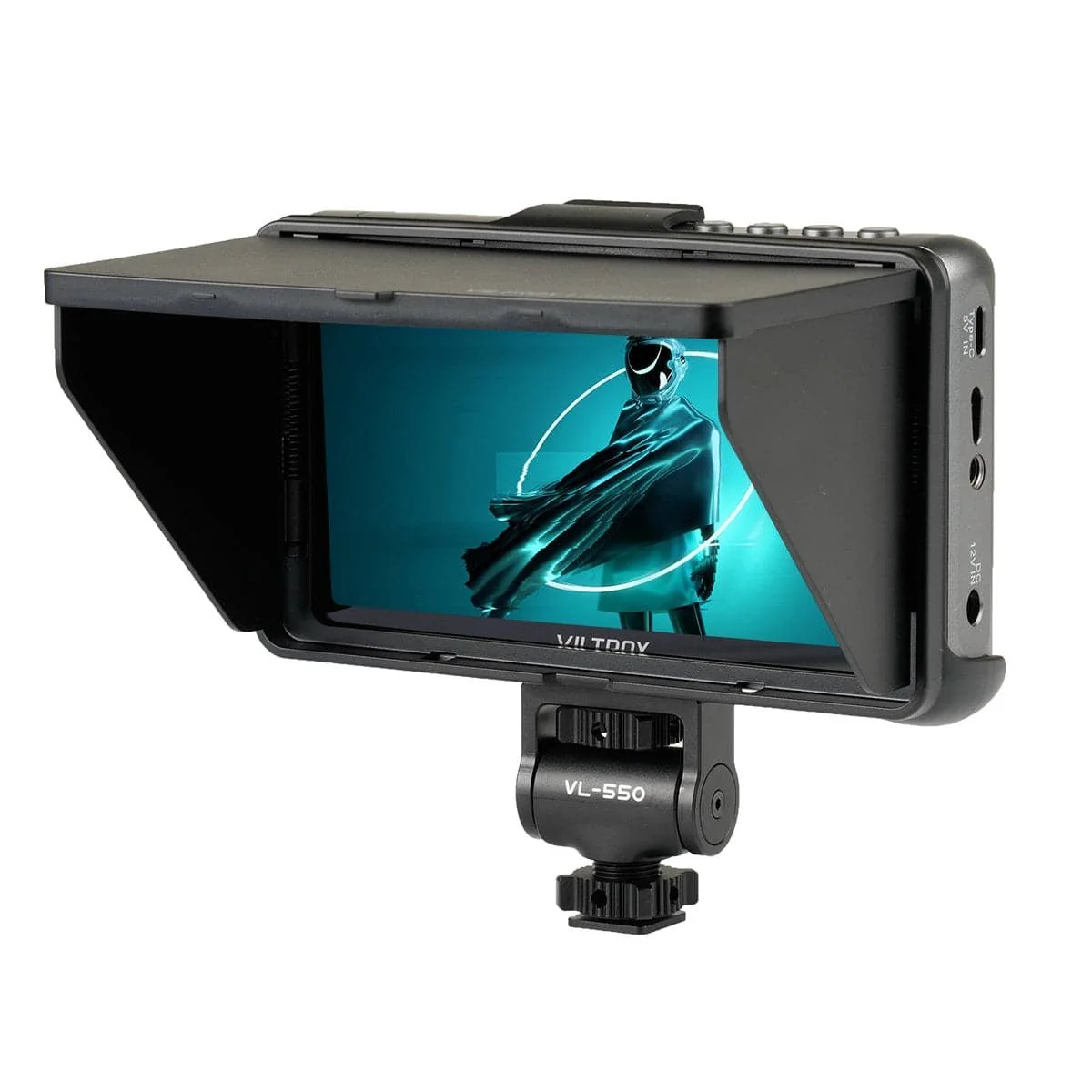

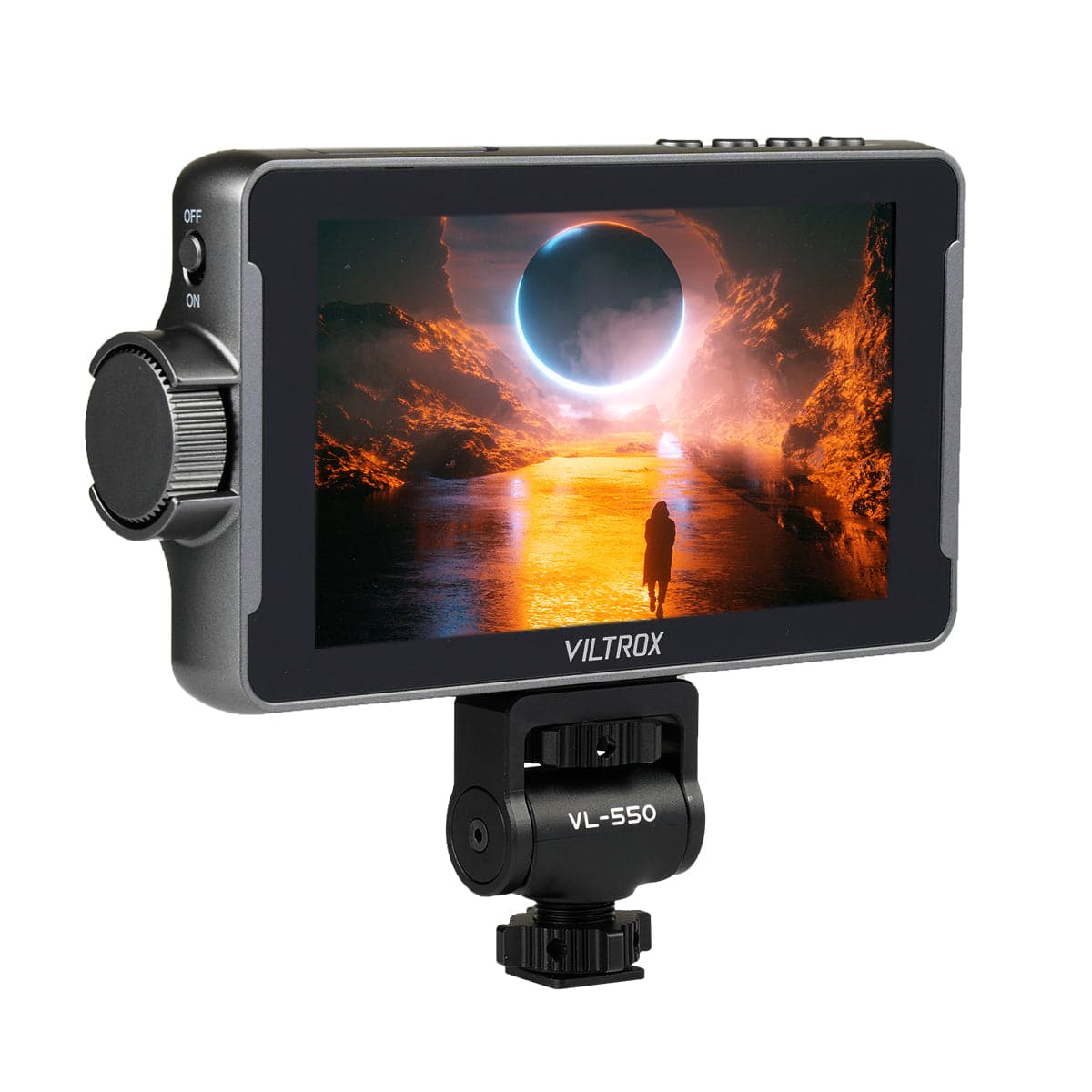

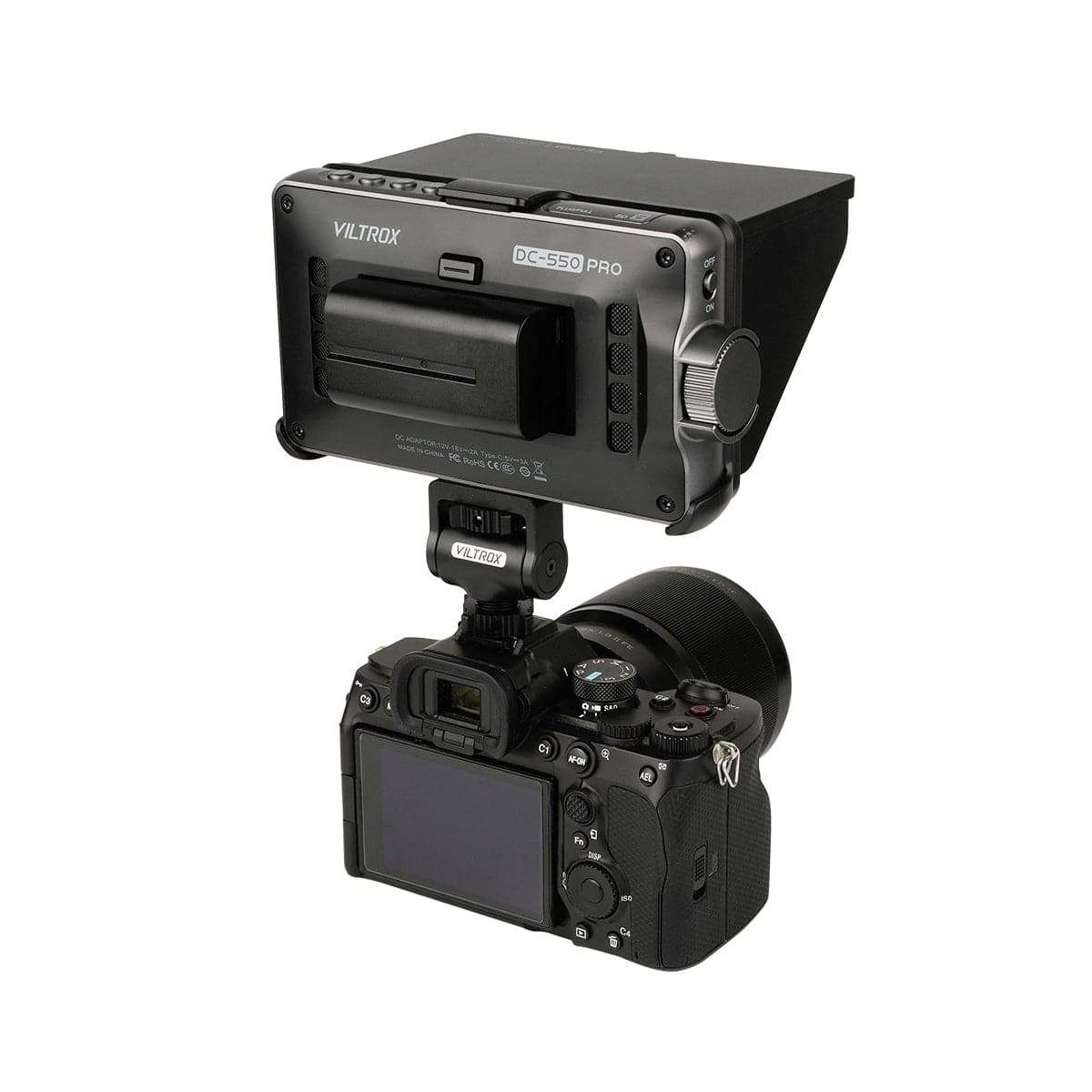

Viltrox DC-550 Portable 5.5 Inch HD Camera Monitor

Viltrox DC-550 Portable 5.5 Inch HD Camera Monitor

【400/1200 Nits High Brightness High Definition】:With 400/1200 Nits high-brightness display screen, not afraid of bright light, high-definition monitoring. With a resolution of 1920×1080 pixels, 1200:1 contrast, and 178°ultra-wide angle design, creators can enjoy high-definition image quality when monitoring from different angles.
【Full HD Resolution, Reveals True Beauty】:1920*1080 high-definition resolution, every color can be delicately and accurately restored, high-definition monitoring, capturing details, and showing the real beauty.
【178° Ultra-wide Viewing Angle】: The 178° ultra-wide-angle design is convenient for creators to enjoy clear picture quality when monitoring from different angles
【Professional Monitoring Software】:DC-550 series has rich monitoring functions, imports 3D LUT through the SD card, and helps the photographer achieve a variety of creative effects in the post-editing. In addition, it also has a Parade waveform, vector graph, brightness histogram, auxiliary focus, audio column, image flip, false color, etc.
【Custom 3D LUTS】: Import 3D LUT through an SD card, which is convenient for customers to use any camera Log mode to shoot and monitor, and it is also convenient to achieve a variety of creative styles in post-production.
【Image Zoom Function】: Touch screen mode: Support double-finger touch screen to drag the screen to view any point details. Button mode: Physical buttons to control image size.

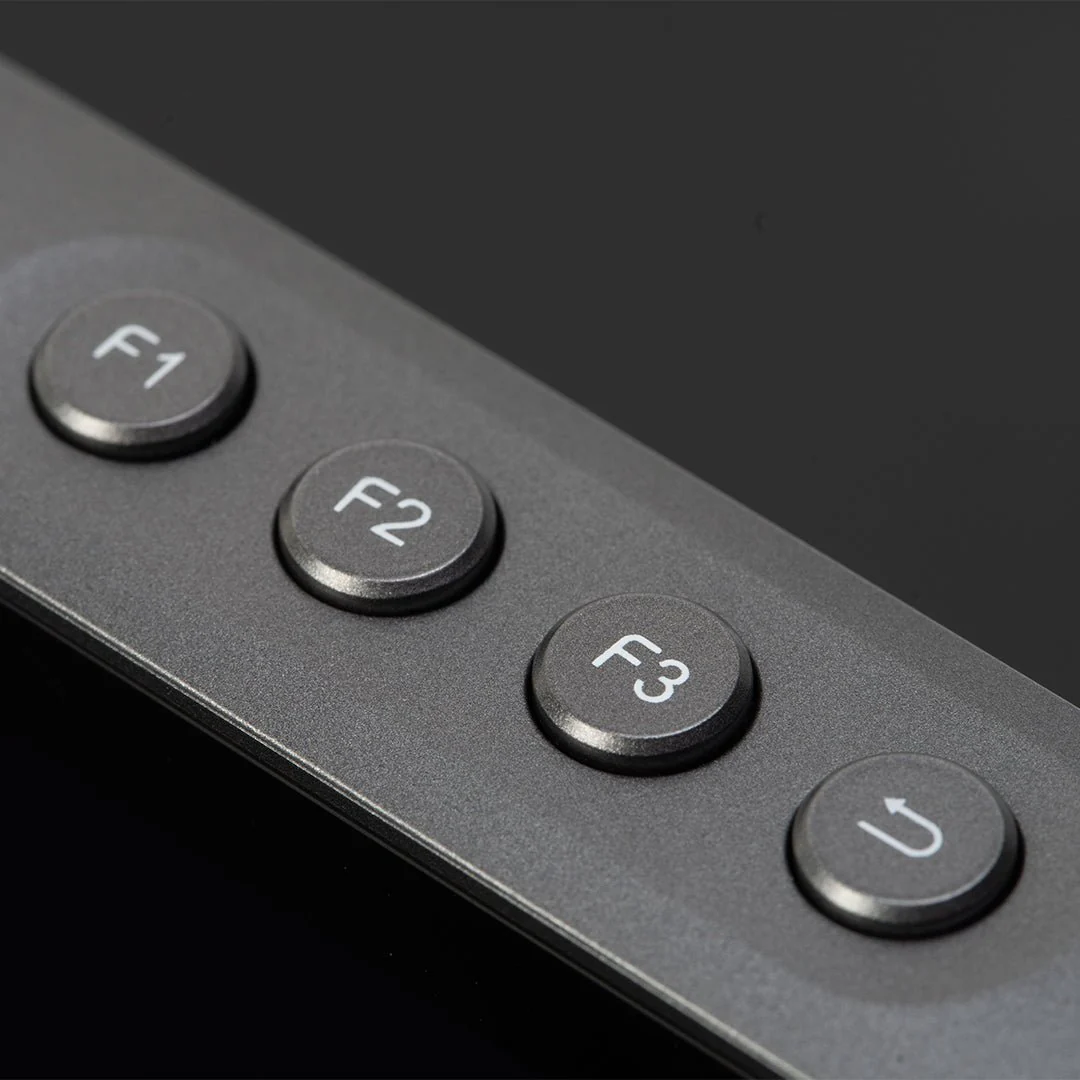

【Settings and Touch Screen】: The DC-550 series supports touch screen control and button settings.
【Professional Color Adjustment True Color Rendering】:In accordance with the REC.709 international color standard, the Viltrox DC-550 series has the built-in 3D LUT precise color reproduction without distortion or color cast, making the visual experience more natural and real than the original camera screen.

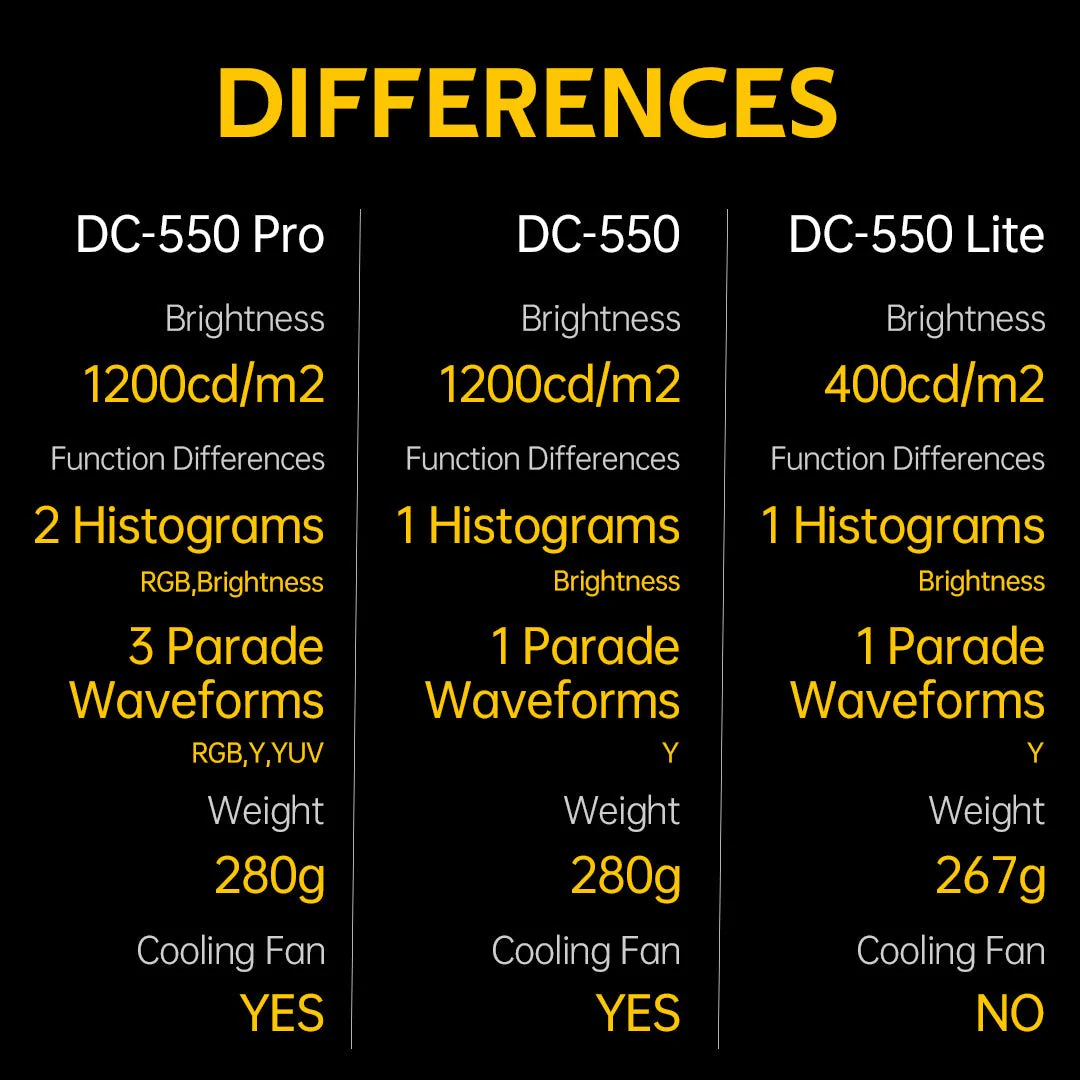

Product Specifications

Model		DC-550	DC-550 Pro	DC-550 Lite
Screen display	LED screen	5.5-inch
	Resolution	1920X1080 pixels
	Brightness	1200cd/m² 1200cd/m² 400cd/m²
Input signal interface	HDMI1.4 signal input
Output signal interface	HDMI1.4 signal output
Audio	Headphone jackφ3.5
Firmware upgrade	SD card upgrade

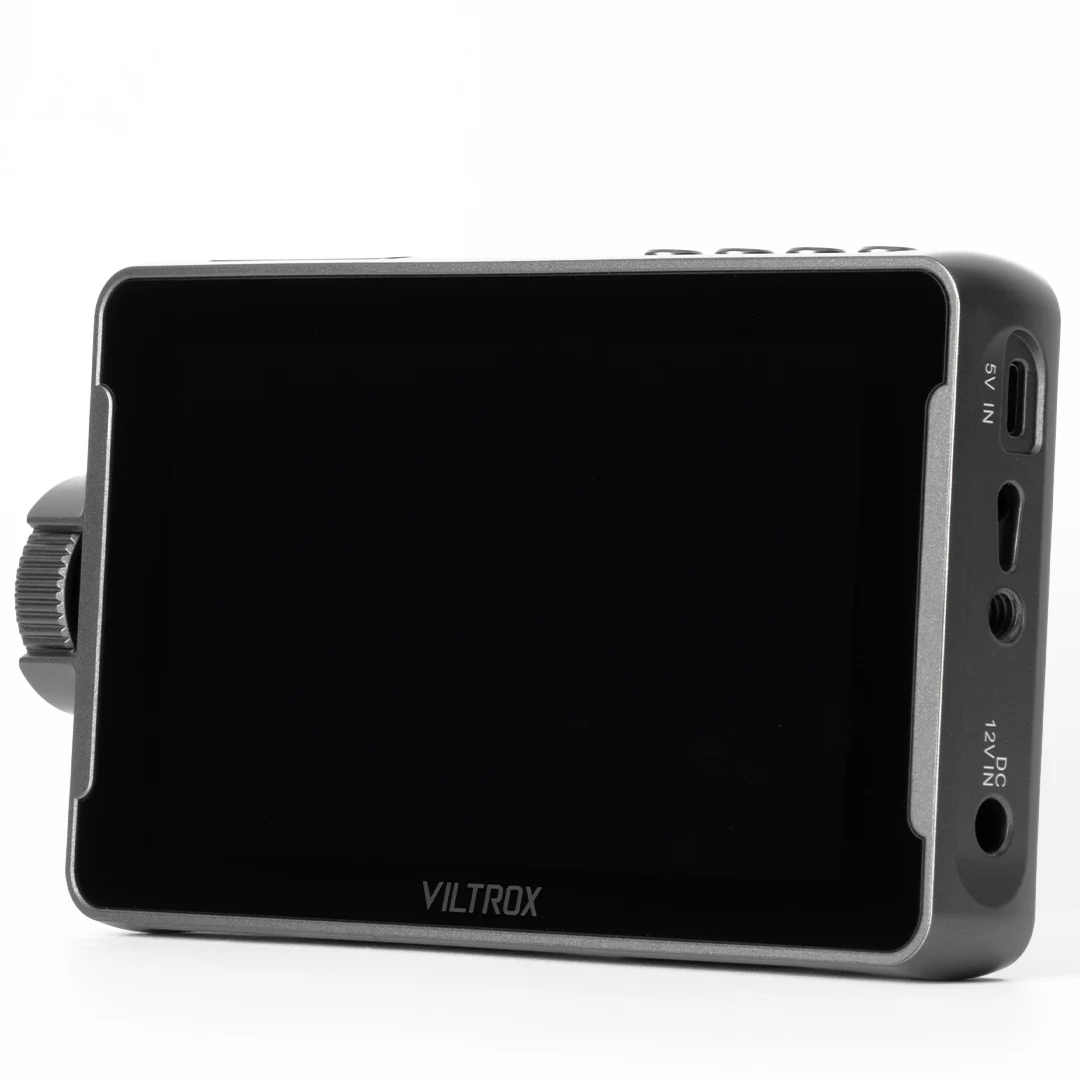

Power interface	DC12V-18V=2A、Type-C interface≥5V=3A

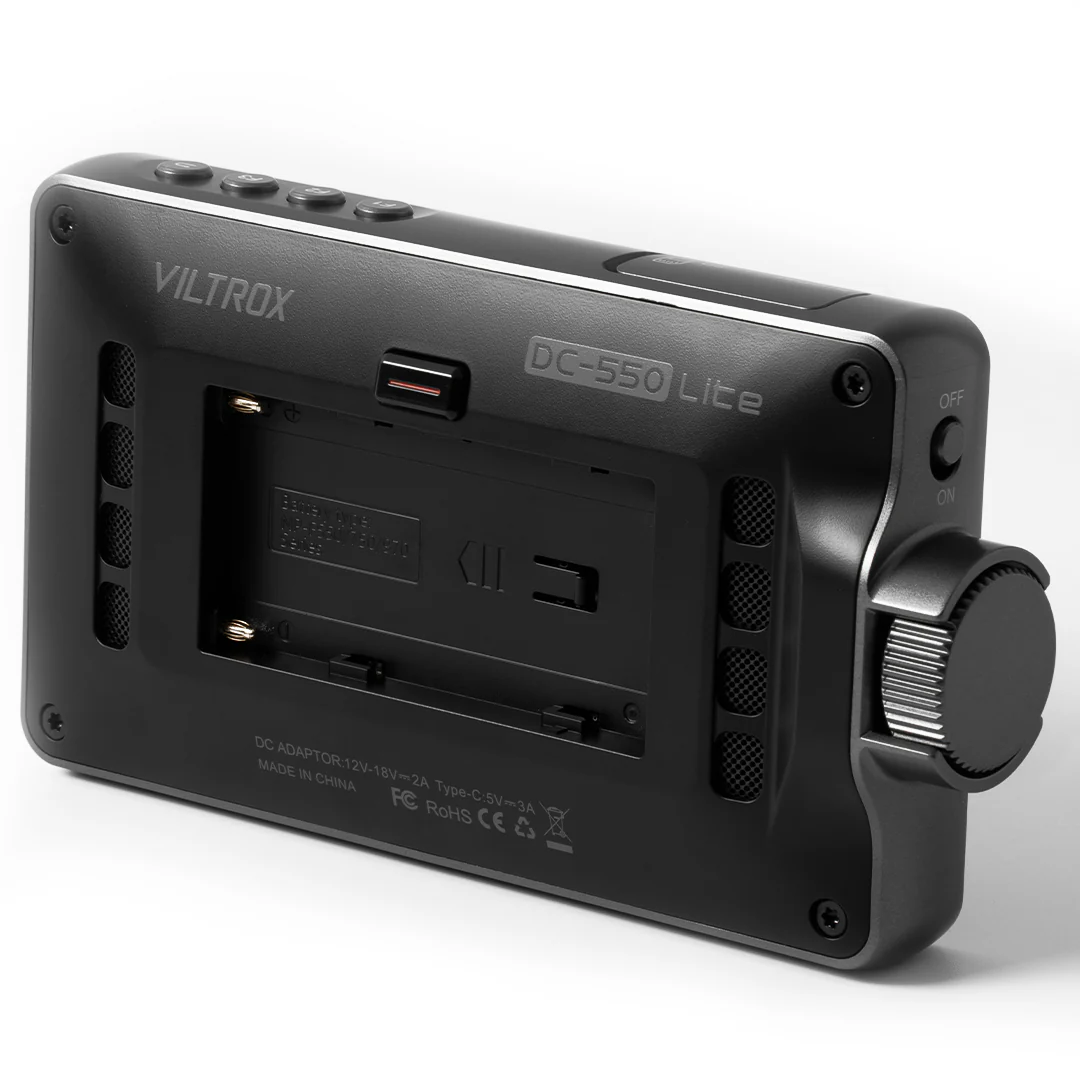

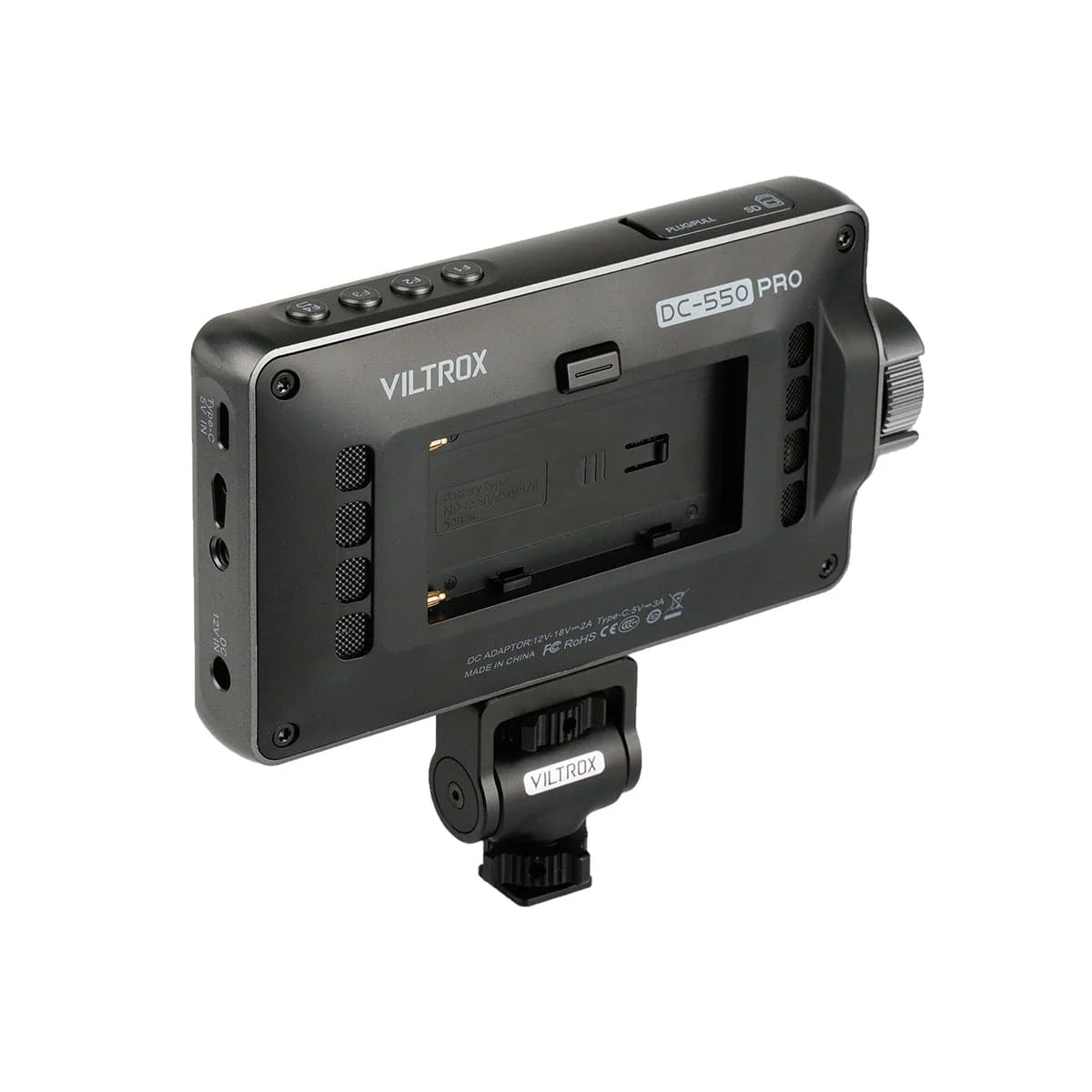

Applicable battery	NP-F550/F570/F750/F770/F960/F970
Working environment	Operating temperature	+0 to+40°C(+32 to+104°F)
	Storage temperature	-20 to+60°C(-4 to+140°F)
Dimensions	≈165X91X28.5mm
Weight	≈280g ≈280g ≈267g

Product Video

FAQs

Q1: Do the monitors support 3D Luts loop out?

A： NO, they don't.

Q2: Can the touchscreen function of DC-550Pro be turned off？

A： YES. Just long-press the knob button to switch between the” on“ and ”off“ of the touchscreen.

Q3: Do the monitors support audio monitoring？

A： YES. There is a 3.5 mm headphone jack.

Q4: Can we use an SD card on the SD card slot for recording?

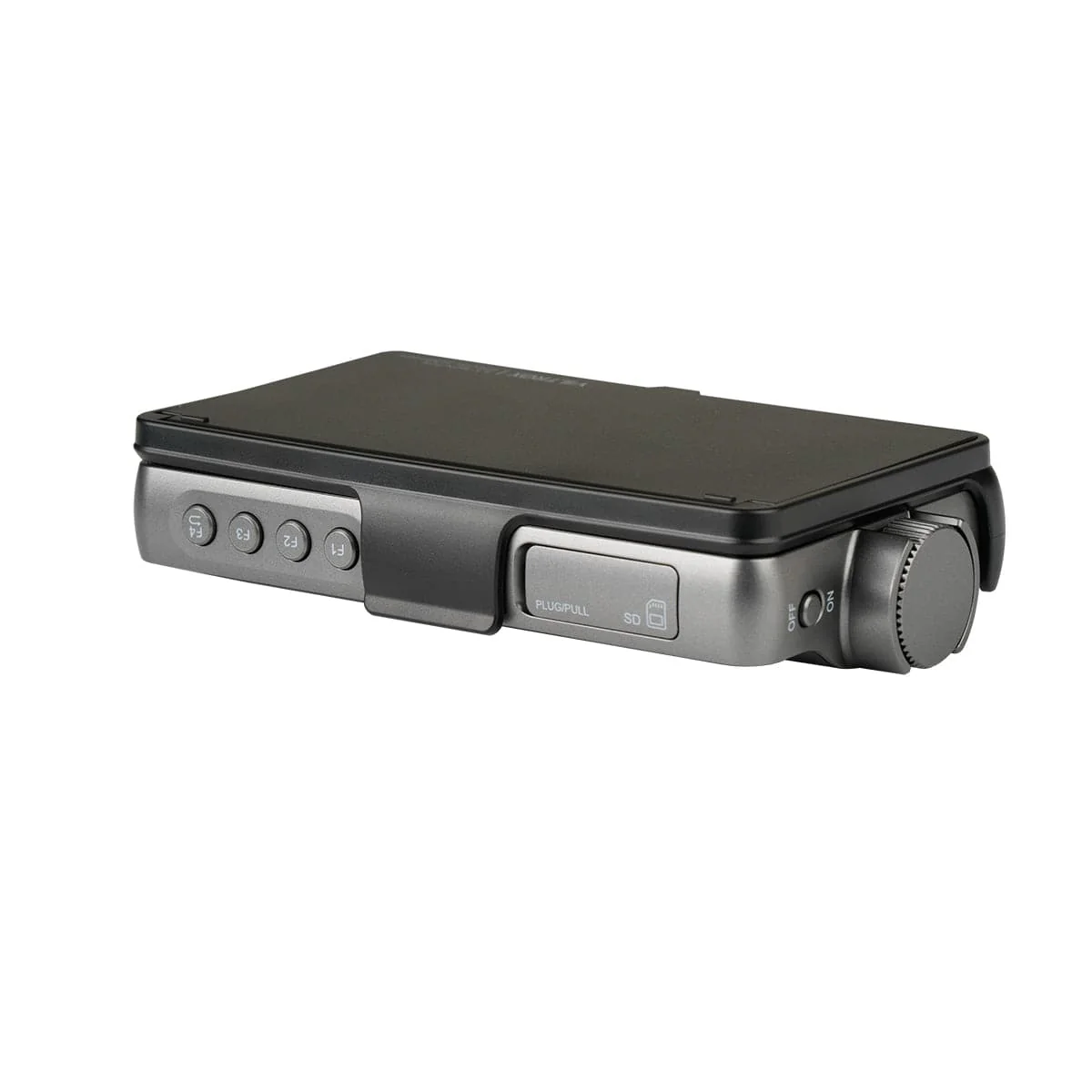

A: NO. The monitor does not support the recording function and the SD card slot is only for 3D Luts and firmware updates.
